Woburn Ultimate Woburn Ultimate Plus Size Profiling Bed

Harvest
SKU: T2C-HHC-HLB798
10 In Stock

Quick Overview

Woburn Ultimate Plus Size Profiling Bed The Woburn Ultimate Plus Size Profiling Bed is designed for plus sized patients use. Designed with aluminium side rails and an under-bed strengthening bar, the Ultimate is able to support weights of up to 60 Stone / 381 kg. The bed is also available...
Regular Price £1,500.00 Sale Price Unit price: £0.00
Shipping calculated at checkout.
Size Chart

Secured and trusted checkout with

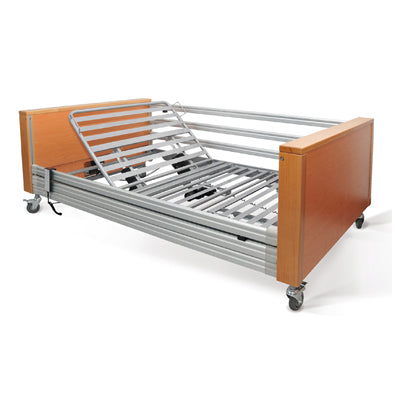

Woburn Ultimate Plus Size Profiling Bed

The Woburn Ultimate Plus Size Profiling Bed is designed for plus sized patients use.

Designed with aluminium side rails and an under-bed strengthening bar, the Ultimate is able to support weights of up to 60 Stone / 381 kg. The bed is also available in both 1200mm and 1400mm wide.

For taller patients, the bed can optionally be extended by 200mm.
Bed accessories include:

  • Underbed Light
  • Vigilant Falls Reduction System
  • Side Rail Bumpers
  • Ultimate Lifting Pole

A range of wide fit, plus size active and static mattresses are available to fit the bed. To ensure the end user complies with Bed Rail Regulations, the bed will support a maximum mattress depth of 260mm.

Features

  • Safe Working Load 381 kg / 60 Stone
  • Adjustable Height 275 – 690mm
  • 9v Battery Backup
  • Low Voltage 29v
  • Integral Aluminium Side Rails
  • Wraparound Wooden Head and Foot Boards
  • Lockable Handset
  • 4 Section Profiling
  • CE marked
  • Supplied with a comprehensive manual
  • Adjustable Handset; allows for freedom of movement and patient comfort
  • Braked Wheel Castors; the braked wheel castors add extra stability whilst the bed is stationary, and freedom of movement in transportation. Wheels can be locked into place.

Specifications

HLB798.12 HLB798.14
Max. Patient Weight: 300 kg / 47 Stone 300 kg / 47 Stone
Safe Working Load: 381 kg / 60 Stone 381 kg / 60 Stone
Max. Mattress Thickness with Side Rails: 260mm 260mm
Overall Length: 2180mm 2180mm
Overall Width: 1335mm 1535mm
Adjustable Height: 275 – 690mm 275 – 690mm
Mattress Platform Dimensions: 2000 x 1200mm 2000 x 1400mm
Angle of Back Rest: 70° 70°
Angle of Thigh Rest: 30° 30°
Total Bed Weight: 157kg (+17 kg Side Rails) 188kg (+17 kg Side Rails)
Motor Unit Protection Class: IPX4 IPX4
Medical Product: Class 1 Class 1
Aluminium Rails for Ultimate Bed – Set of 6 HLDU110 HLDU110
