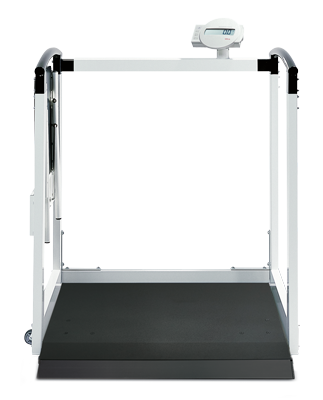

Seca 685 R Multifunctional Scale

The seca 685 r is a Class III medically approved multifunctional scale designed for the safe weighing of standing, sitting, and wheelchair patients. Firmly anchored steel handrails on both sides provide a secure three-sided holding option, while an integrated ramp allows wheelchairs to roll safely onto the large non-slip platform. The 360° swivel display ensures easy reading from any position, and the RS-232 interface enables direct transmission of weighing results to external systems.

Key Features

• Class III medically approved — suitable for clinical and care home use

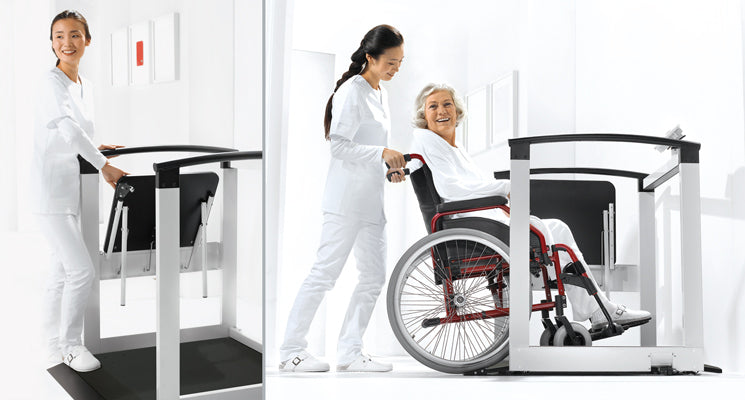

• Safe weighing of standing, sitting, or wheelchair patients
• Firmly anchored steel handrail on both sides — three-sided holding support
• Large, easy-access platform with non-slip surface
• Integrated wheelchair ramp with wheel barrier for extra safety
• 360° swivel display for easy reading from any angle
• RS-232 interface for transmitting weighing results to external devices
• 300 kg capacity with 100 g graduation
• BMI calculation function
• Supplied with power adapter and one access ramp

Functions

• TARE, Pre-TARE, HOLD, Auto-HOLD, Auto-CLEAR, RESET
• Automatic weighing range switch-over
• Adjustable damping
• BMI

Technical Specifications

• Capacity: 300 kg
• Graduation: 100 g (<200 kg) / 200 g (>200 kg)
• Accuracy: ±50 g (<50 kg) / ±100 g
• TARE Range: 300 kg
• Power Supply: Power adapter (no switch-off)
• HOLD on-time: 300 seconds
• Interface: RS-232
• Digit size: 25 mm
• Net weight: 59.5 kg
• Dimensions (W × H × D): 930 × 1,110 × 1,070 mm
• Platform (W × H × D): 800 × 55 × 840 mm
• Min reading level: 115 cm
• Ramp: 1 x integrated
