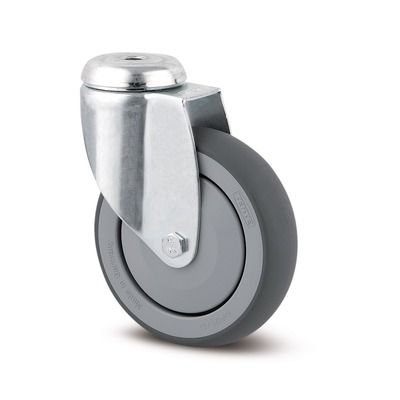

Tente Agila 2470 Series Castor – Non-Braked PJP Bolt Hole 11mm
Tente Agila 2470 Series Castor – Non-Braked PJP Bolt Hole 11mm
Couldn't load pickup availability
The Tente Agila 2470 series castor is a high-quality, non-braked castor suited for a wide range of equipment used in hospital and care environments. Available in three wheel diameters — 75mm, 100mm, and 125mm — with a bolt hole 11mm mounting method and non-conductive PJP Supratech wheel tread.
TÜV Süd certified to EN 12530 with a dynamic load rating of up to 75kg and static load of 150kg per castor.
Specifications

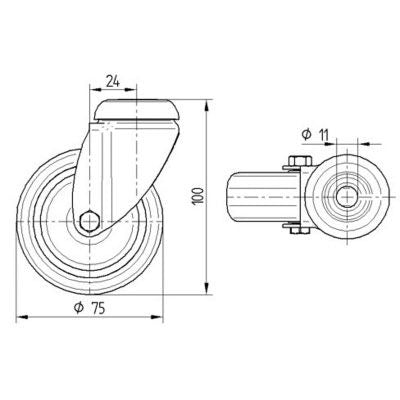

- OEM Part Number: 2470PJP075P30-11 (75mm) / 2470PJP100P30-11 (100mm) / 2470PJP125P30-11 (125mm)
- Wheel Tread: PJP Supratech (non-conductive)
- Mounting Method: Bolt Hole Ø11mm
- Brake Function: Non-braked
- Dynamic Load: 75kg per castor
- Static Load: 150kg per castor
- Tyre Width: 25mm
- Swivel Radius: 61.5mm
- Offset: 24mm
- Hardness of Tread: A 87 Shore
- Electrical Conductivity: No
- Certification: TÜV Süd, EN 12530
- Stainless Steel Bearings: No
Key Features
- Non-striping tread — protects floor surfaces in clinical environments
- Two ball races in the swivel head for easy steering
- Precision ball bearings in the wheel for smooth running
- Symmetrical design for straightforward installation
Field of Application
- Emergency Room, Nursing Room, Operating Room, Patient Room
- Medication Carts, Surgical Carts, Instrument Carts, Tray Carts
- Incubators, Laboratory Equipment, Drawer Cabinets, Console PCs
- Catering Trolleys, Trolley Tables
For alternative diameters, mounting methods, or wheel treads, please contact us to discuss your requirements.
