SEKO LS100 Laundry Dosing System
SEKO LS100 Laundry Dosing System
Couldn't load pickup availability
The SEKO LS100 Laundry Dosing System is a high-performance chemical dosing solution designed for on-premise laundry (OPL) applications in commercial laundries, healthcare facilities, hospitality environments, and industrial laundry operations.
Unlike traditional dosing pumps, the LS100 uses water pressure and venturi technology to control chemical dosing. This means the system operates without moving parts, reducing wear and significantly lowering maintenance requirements while delivering consistent dosing performance.
The modular LS100 system can dose up to six chemicals as standard, with the ability to expand to ten chemicals if additional modules are added. It can also support multiple washing machines from a single dosing unit, making it ideal for growing laundry operations.

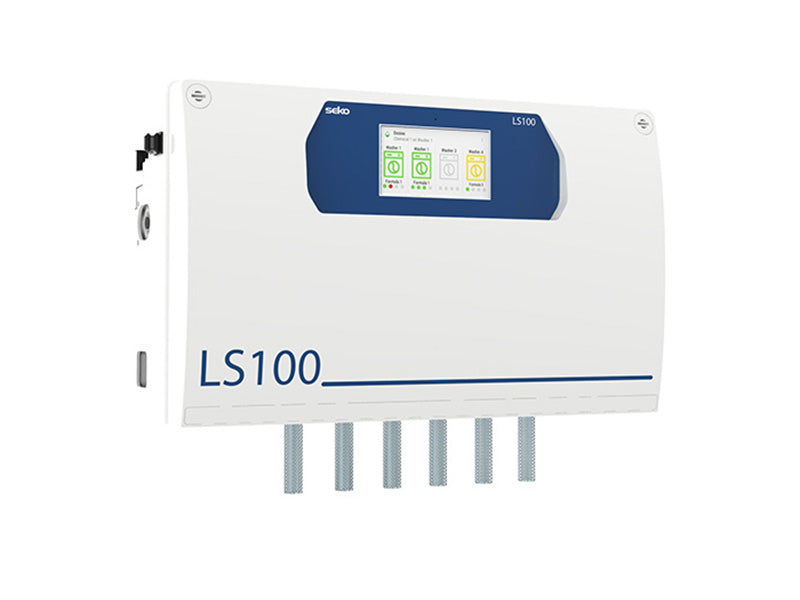

With integrated Bluetooth connectivity via the SekoBlue app, operators can monitor system status, manage dosing programmes, and analyse wash data remotely. A 4.5-inch colour touchscreen display provides intuitive local control and monitoring.
The result is a reliable, efficient dosing system that helps reduce chemical waste, optimise wash performance, and lower operating costs in professional laundry environments.
Key Features
-
Venturi-based chemical dosing system
-
Uses water pressure instead of mechanical pumps
-
No moving parts, reducing wear and maintenance
-
Doses up to 6 chemicals as standard (expandable to 10)
-
Supports multiple washing machines
-
Bluetooth connectivity via SekoBlue app
-
4.5" colour touchscreen display
-
Chemical tank monitoring
-
Colour-coded chemical identification labels
-
Modular design for easy expansion
-
Remote management through SekoWeb platform
-
Precise dosing helps reduce chemical and water consumption
Specifications
| Specification | Details |
|---|---|
| Power Supply | 100β240 VAC, 50β60 Hz |
| Flow Rate (Low) | 650 ml/min |
| Flow Rate (High) | 1,300 ml/min |
| Operating Pressure | Minimum 1.5 bar |
| Maximum Dynamic Pressure | 6 bar |
| Maximum Chemicals | 6 standard (expandable to 10) |
| Machine Connections | Up to 4 washing machines |
| Control Interface | 4.5" Touchscreen |
| Connectivity | Bluetooth via SekoBlue App |
| Application | On-Premise Laundry (OPL) |
Β
Technical specifications may vary depending on configuration and installation setup.Β
Typical Applications
-
Commercial laundries
-
Care homes and healthcare laundries
-
Hospitality laundry operations
-
Industrial and institutional laundry facilities
-
On-premise laundry (OPL) systems
Need Installation Support?
Installing and maintaining commercial laundry dosing systems requires specialist knowledge to ensure safe operation and reliable performance.
The engineers at 24 NRG Group provide nationwide support including:
-
Laundry dosing system installation
-
Chemical dosing system commissioning
-
Preventative maintenance and servicing
-
Equipment upgrades and technical support
