Oxford Mini 140 Hoist

The Oxford Mini 140 is purpose-built for the home-care environment, where space is tight and manoeuvrability matters most. At just 28.5kg with a compact chassis (600mm closed), it slips through standard doorways and glides under most furniture on low-profile front castors, yet it still offers an excellent lift range from floor level to high surfaces. Buyers can choose an electric version complete with Oxford's Smart Monitor diagnostics, service reminders and an LCD battery indicator or a hydraulic version ideal where mains power is limited. Safety features include a foot-pedal leg opening with lock, rear braked castors, and an emergency raise/lower function operable with a pen tip. Three spreader-bar sizes (paediatric, standard, large) let you match the sling position to the individual. Its 140kg capacity makes it best suited to lighter residents rather than bariatric use, and it is backed by a 5-year frame-and-actuator warranty. For domestic and small nursing settings that need a durable, manoeuvrable and well-supported compact hoist, the Mini 140 is a long-standing benchmark.

Key Features

• Safe Working Load: 140 kg (22 st / 309 lbs)
• Smart Monitor diagnostic and service tracking as standard

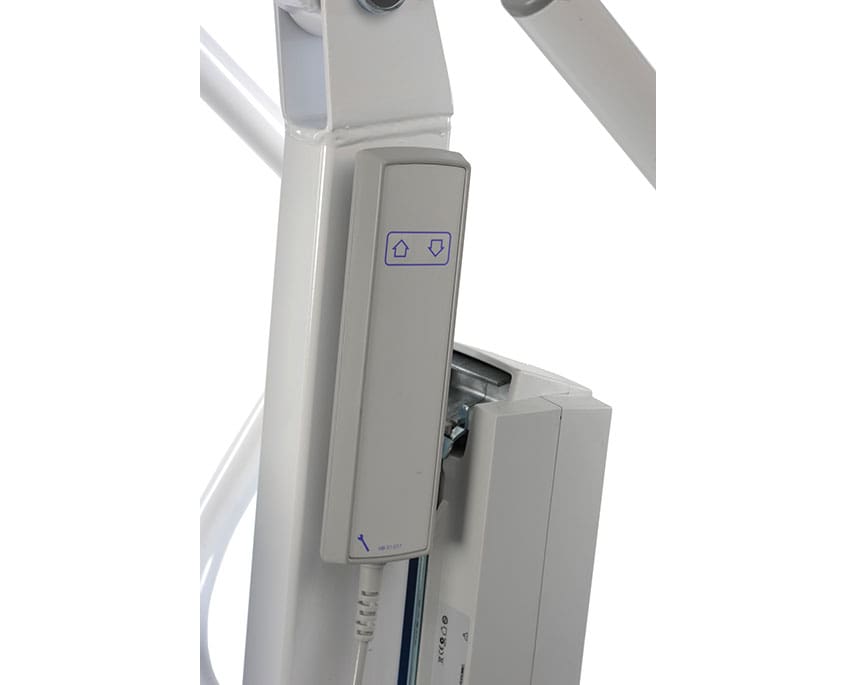

• Detachable battery pack with desktop charger included
• Foot-pedal leg opening with latch/lock for secure positioning
• Spreader bar height range: 530–1545 mm
• Compact closed width: 600 mm — fits through standard doorways
• High-grade castors for smooth movement around furniture

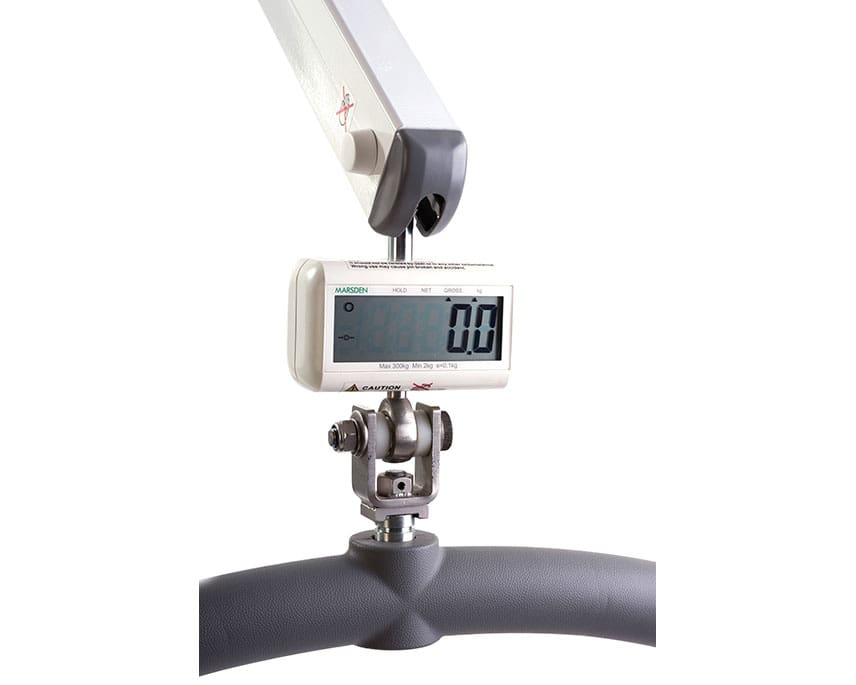

• Optional Class III digital weigh scale available

Technical Specification:

• Safe Working Load: 140 kg / 22 st / 309 lbs
• Length: 1175 mm
• Max Overall Height: 1730 mm | Min Overall Height: 1230 mm
• Max Spreader Bar Height: 1545 mm | Min: 530 mm
• Turning Radius: 1150 mm
• Legs Open Width: 1060 mm | Legs Closed Width: 600 mm
• Ground Clearance: 25 mm
• Total Weight: ~28.5 kg
