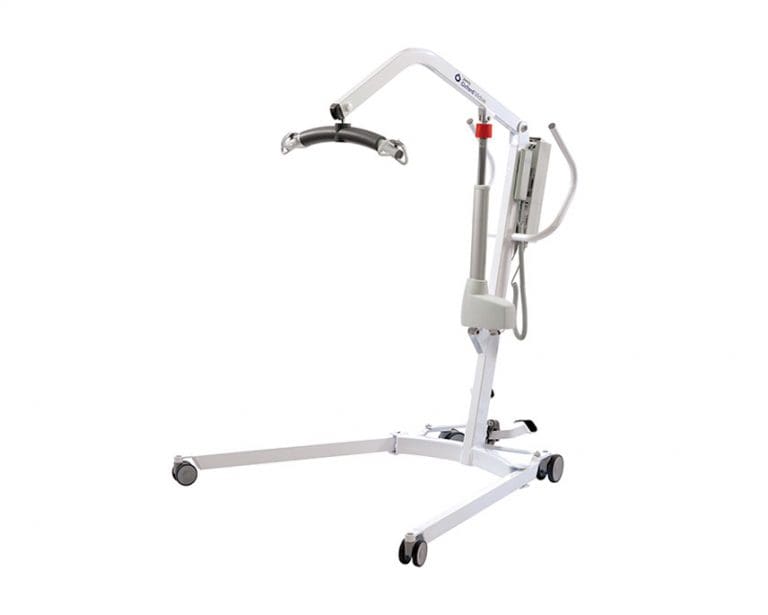

Oxford Midi 180

The Oxford Midi 180 Mobile Patient Lift is one of the UK’s most trusted mobile hoists, combining a compact footprint with a 180 kg safe working load and Smart Monitor diagnostics as standard. Ideal for home care, nursing homes, assisted living, and clinical environments, it delivers reliable, efficient transfers in spaces where a larger hoist would be impractical.

• Safe Working Load: 180 kg (28 st / 397 lbs)
• Smart Monitor diagnostic system — usage tracking and service interval alerts
• Compact closed width: 600 mm — similar footprint to the Mini 140
• Spreader bar height range: 525–1660 mm
• Foot-pedal leg adjustment with latch for safe, flexible positioning
• High-grade castors and ergonomic push handle for smooth manoeuvrability

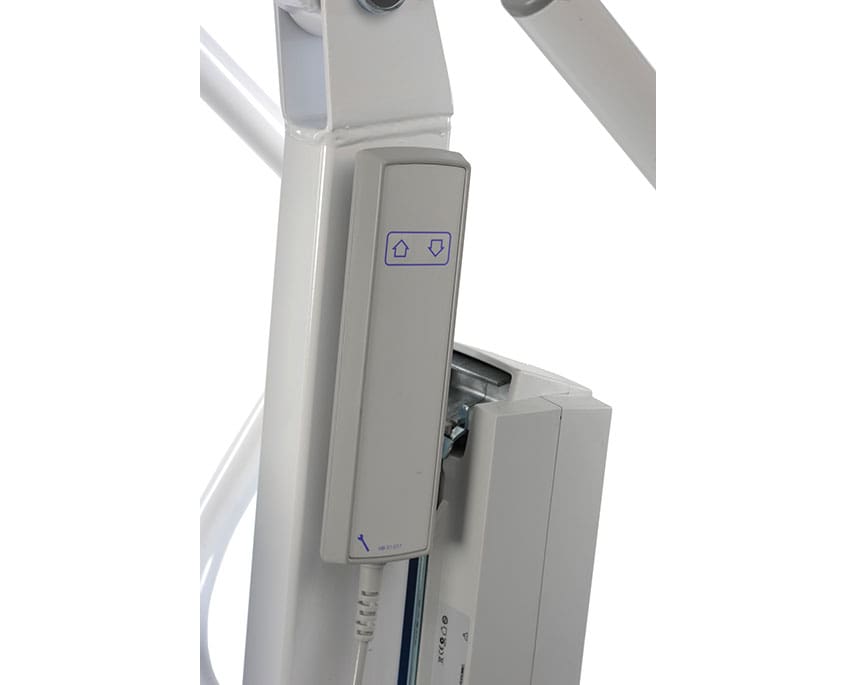

• Detachable battery pack with desktop charger included

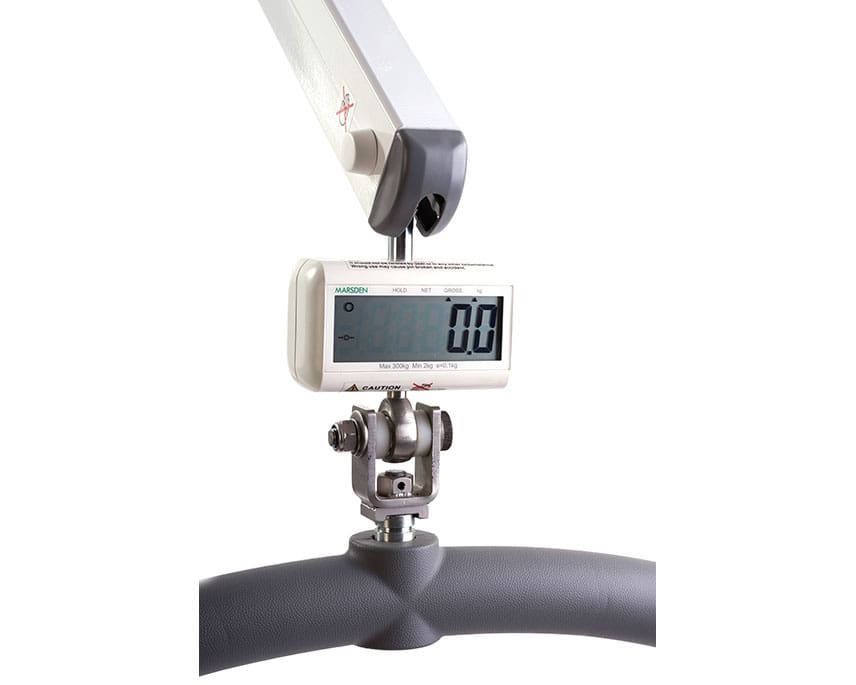

• Optional Class III digital weigh scale available
• Total weight: ~32 kg

Compact Yet Capable — The Oxford Midi 180 shares a similar compact footprint to the Mini 140 but delivers a significantly higher 180 kg safe working load, making it an ideal step-up for care environments where a broader range of client weights must be accommodated without sacrificing manoeuvrability. At just 600 mm wide when closed, it navigates narrow doorways and tight spaces with ease.

Smart Monitor Diagnostics — The built-in Smart Monitor system tracks usage cycles and service intervals, providing a clear maintenance record to support LOLER compliance and planned servicing schedules. This makes the Midi 180 well suited to high-usage environments where equipment reliability and audit trails are essential.

Practical for Everyday Care — The foot-pedal leg adjustment with latch allows secure positioning without bending, reducing carer strain during setup. The ergonomic push handle and high-grade castors ensure smooth, controlled movement throughout the transfer, and the detachable battery pack with desktop charger keeps the hoist ready for use between sessions.

Technical Specification:

• Safe Working Load: 180 kg / 28 st / 397 lbs
• Length: ~1225 mm
• Max Overall Height: ~1840 mm | Min Overall Height: ~1240 mm
• Max Spreader Bar Height: ~1660 mm | Min: ~525 mm
• Turning Radius: ~1235 mm
• Legs Open Width: ~1170 mm | Legs Closed Width: ~600 mm
• Ground Clearance: ~25 mm
• Total Weight: ~32 kg
