Joerns

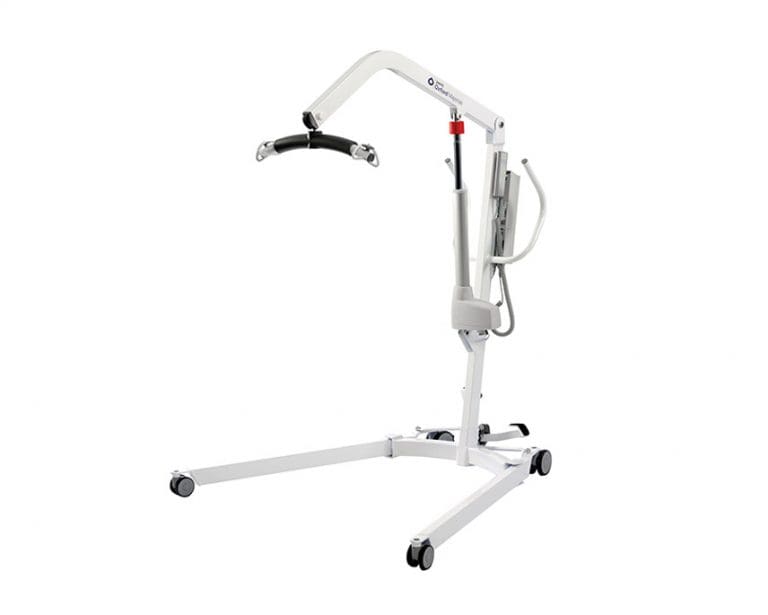

Oxford Major 200 Classic Lift
Oxford Major 200 Classic Lift
Couldn't load pickup availability
The Oxford Major 200 Classic Lift stands out as a high-capacity, reliable mobile hoist suitable for nursing, acute care environments, and home use. This robust lift supports up to 200 kg (31 st / 441 lb), offering versatility and exceptional performance across diverse care situations.
Equipped with the Smart Monitor diagnostic system, it provides real-time operational insights—such as lift cycles, battery status, service reminders, and overload attempts—directly via an integrated display. Transfer-ready features include a foot-pedal leg opening mechanism with latch/lock, ergonomic push handles, and optional electric leg adjustments for simplified caregiver use.
Built for adaptability, the Major 200 is compatible with a full range of Oxford passive loop slings and offers a choice of three spreader bar sizes to fit varied patient morphologies. It also supports detachable battery packs, desktop chargers, and an optional Class III digital weigh scale for added utility.
Key Features
-
Heavy-duty lift capacity of 200 kg (31 st / 441 lb)
-
Smart Monitor diagnostic system with service data and overload tracking
-
Foot-pedal leg adjustment (with optional electric leg control)
-
Compatible with Oxford passive loop slings across all models
-
Three spreader bar size options for personalized sling fit
-
Detachable battery pack, desktop charger, and optional weigh-scale available
Specifications
| Specification | Detail |
|---|---|
| Safe Working Load (SWL) | 200 kg / 31 st / 441 lb |
| Lift Height Range | Min: ~1380 mm • Max: ~1930 mm |
| Spreader Bar Height (Min / Max) | ~565 mm / ~1715 mm |
| Boom Reach (Min / Max) | ~515 mm / ~610 mm |
| Max Reach | ~720 mm |
| Footprint | Legs open: Ext ~1230 mm / Int ~1140 mm Legs closed: Ext ~660 mm / Int ~580 mm |
| Total Weight (Mast + Base) | ~42 kg |
