Oxford Healthcare
Oxford Dipper Bathing Lift
Oxford Dipper Bathing Lift
Couldn't load pickup availability
Safe and Reliable Pool Access for Users with Reduced Mobility

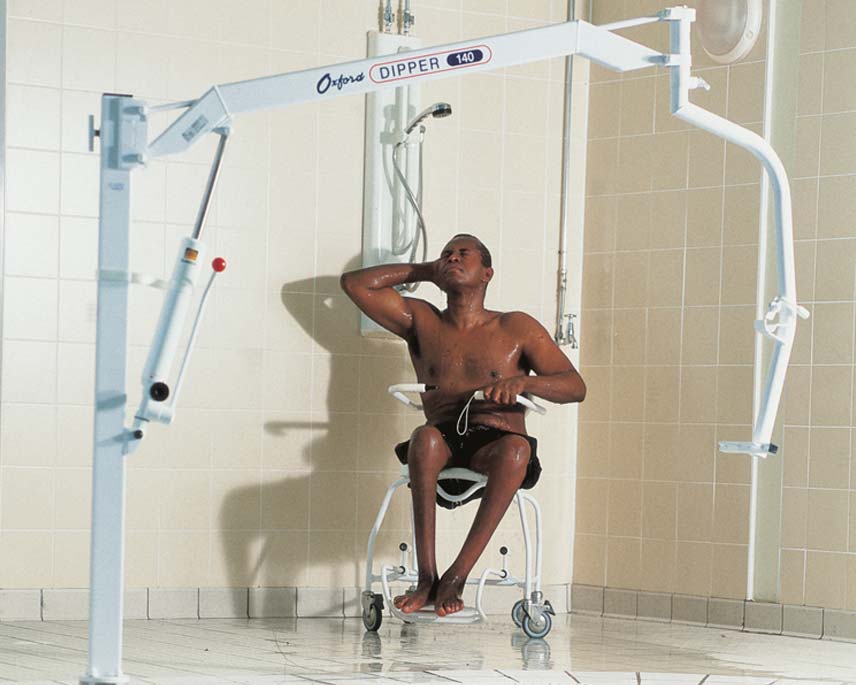

The Oxford Dipper Bathing Lift is a durable and reliable poolside hoist designed to provide safe access to swimming pools and hydrotherapy facilities for individuals with reduced mobility. Built with corrosion-resistant materials and engineered for demanding environments, it is ideal for use in care homes, rehabilitation centres, hospitals, and leisure facilities.

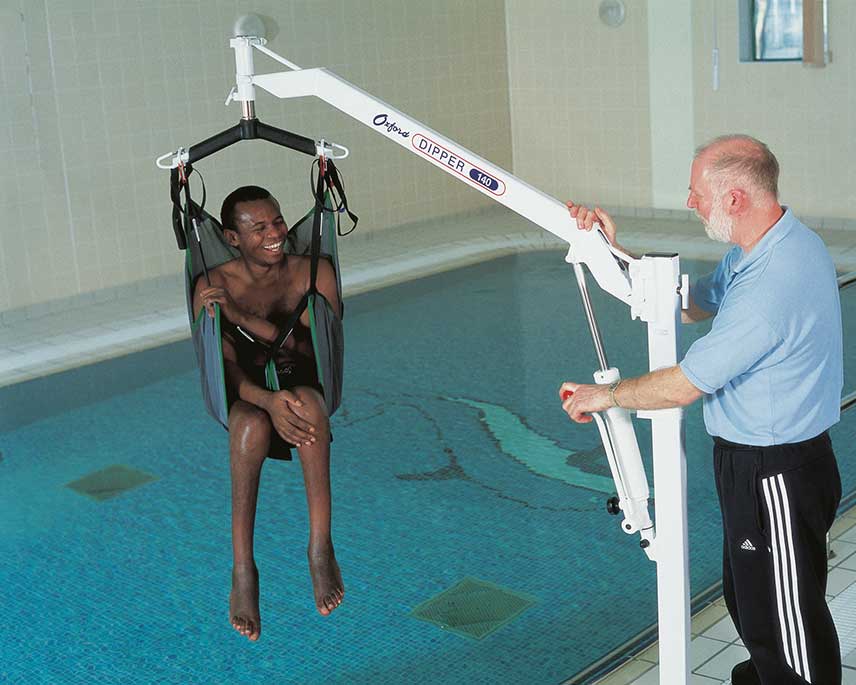

The lift allows carers to safely transfer users into and out of the water using either a compatible sling and spreader bar or the optional Ranger Transporter chair, providing flexibility depending on the needs of the user.
With smooth lifting motion and robust construction, the Oxford Dipper helps reduce manual handling risks while ensuring comfortable and dignified pool access.
Key Features
-
Safe Working Load: 140kg (22 stone / 309 lbs)
-
Designed for swimming pools and hydrotherapy pools
-
Marine-grade stainless steel construction for durability in wet environments
-
Compatible with Oxford passive slings
-
Option to use Ranger Transporter chair
-
Smooth and controlled lifting action
-
Three floor fixing options to suit different pool installations
-
Designed for safe and dignified patient transfers
Ideal Applications
The Oxford Dipper Bathing Lift is suitable for a wide range of environments where assisted pool access is required, including:
-
Hydrotherapy pools
-
Rehabilitation centres
-
Hospitals and physiotherapy clinics
-
Care homes
-
Leisure centres and accessible swimming facilities
Durable Design for Poolside Environments
Constructed from 316 marine-grade stainless steel, the Oxford Dipper is designed to withstand demanding poolside conditions where exposure to water, humidity, and chemicals is common.
Its robust design ensures reliable operation while maintaining long-term durability when maintained correctly.
The lift rotates smoothly and lowers users safely into the water, giving carers full control during transfers and ensuring a comfortable experience for the user.
Flexible Transfer Options
The system can be used with:
-
A standard spreader bar and sling
-
The Ranger Transporter seat
This flexibility allows carers to choose the most appropriate transfer method depending on the user’s needs and mobility.
Specifications
| Specification | Details |
|---|---|
| Safe Working Load | 140 kg / 22 stone |
| Boom Length | 1498 mm |
| Height (Boom Lowered) | 1422 mm |
| Height (Boom Raised) | 2108 mm |
| Seat Height Above Floor | 889 mm |
| Seat Depth Below Floor | 914 mm |
| Mast Assembly Weight | 24 kg |
| Boom Assembly Weight | 11 kg |
| Spreader Bar Weight | 1.7 kg |
Specifications may vary depending on installation configuration.
What’s Included
-
Oxford Dipper mast assembly
-
Boom arm
-
Support tube
-
Installation components
Optional accessories such as slings or transporter seats may be supplied separately.
Need Installation or Servicing Support?
Many specialist lifting systems require professional installation, servicing, and regular safety inspections to ensure they operate safely and remain compliant with industry regulations.
The experienced engineers at 24 NRG Group provide nationwide installation, LOLER inspections, servicing, and maintenance for patient lifting and accessibility equipment.
Our team supports care providers, healthcare facilities, and leisure centres across the UK with:
-
Professional installation of hoists and lifting systems
-
LOLER inspections and compliance testing
-
Preventative servicing and maintenance
-
Expert advice on equipment selection and compatibility
If you would like guidance on installing or maintaining the Oxford Dipper Bathing Lift, our team will be happy to assist.
