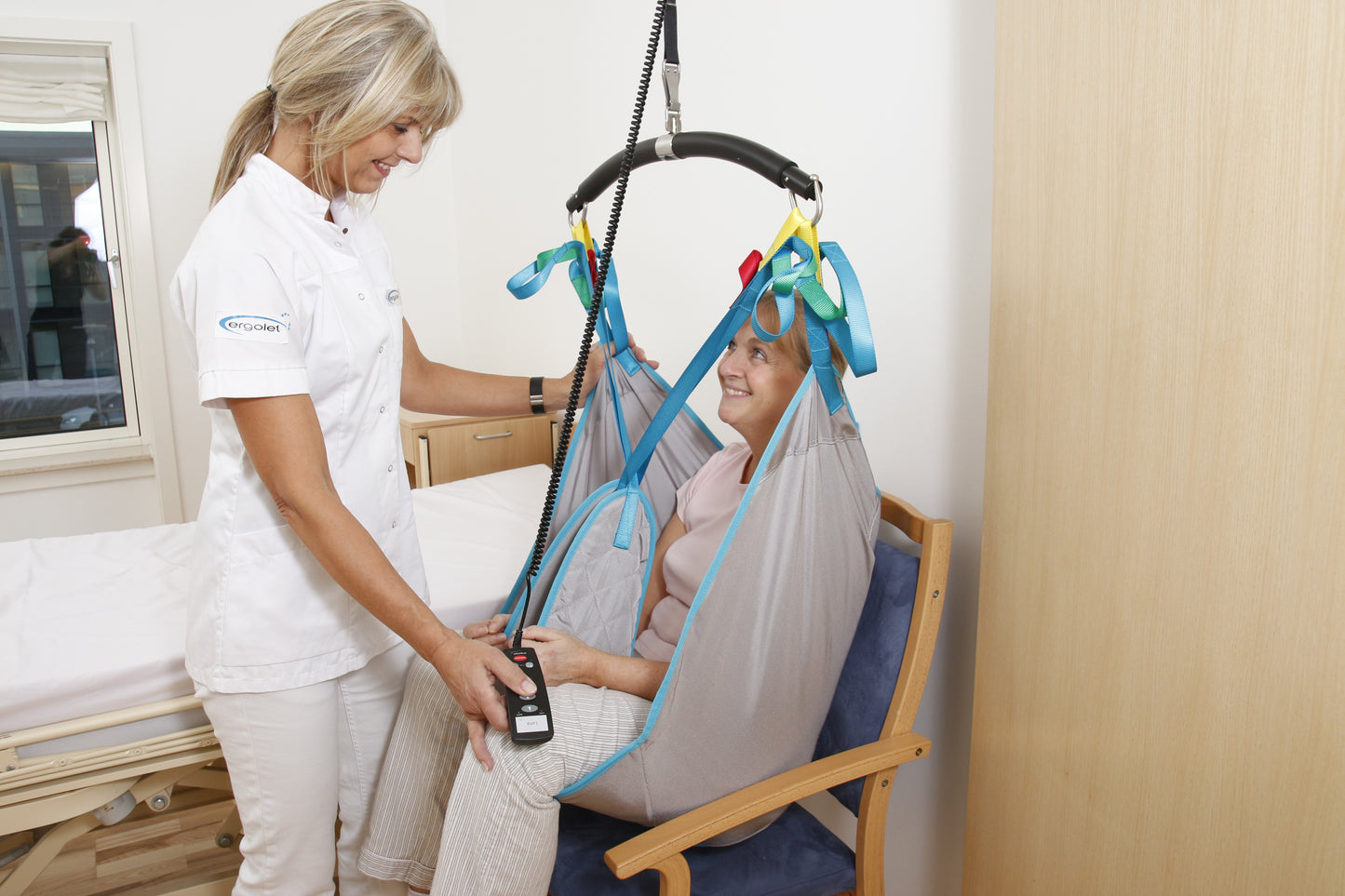

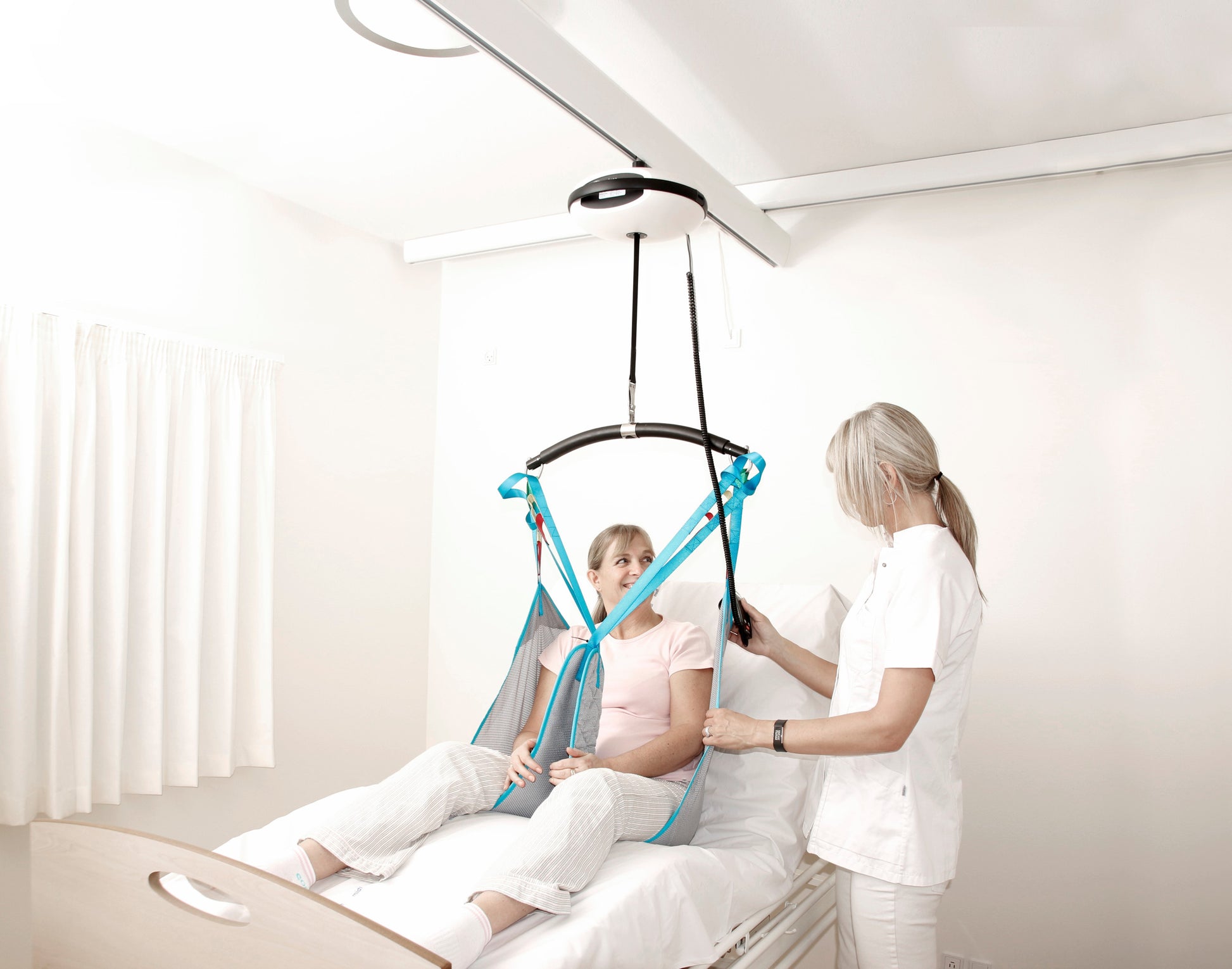

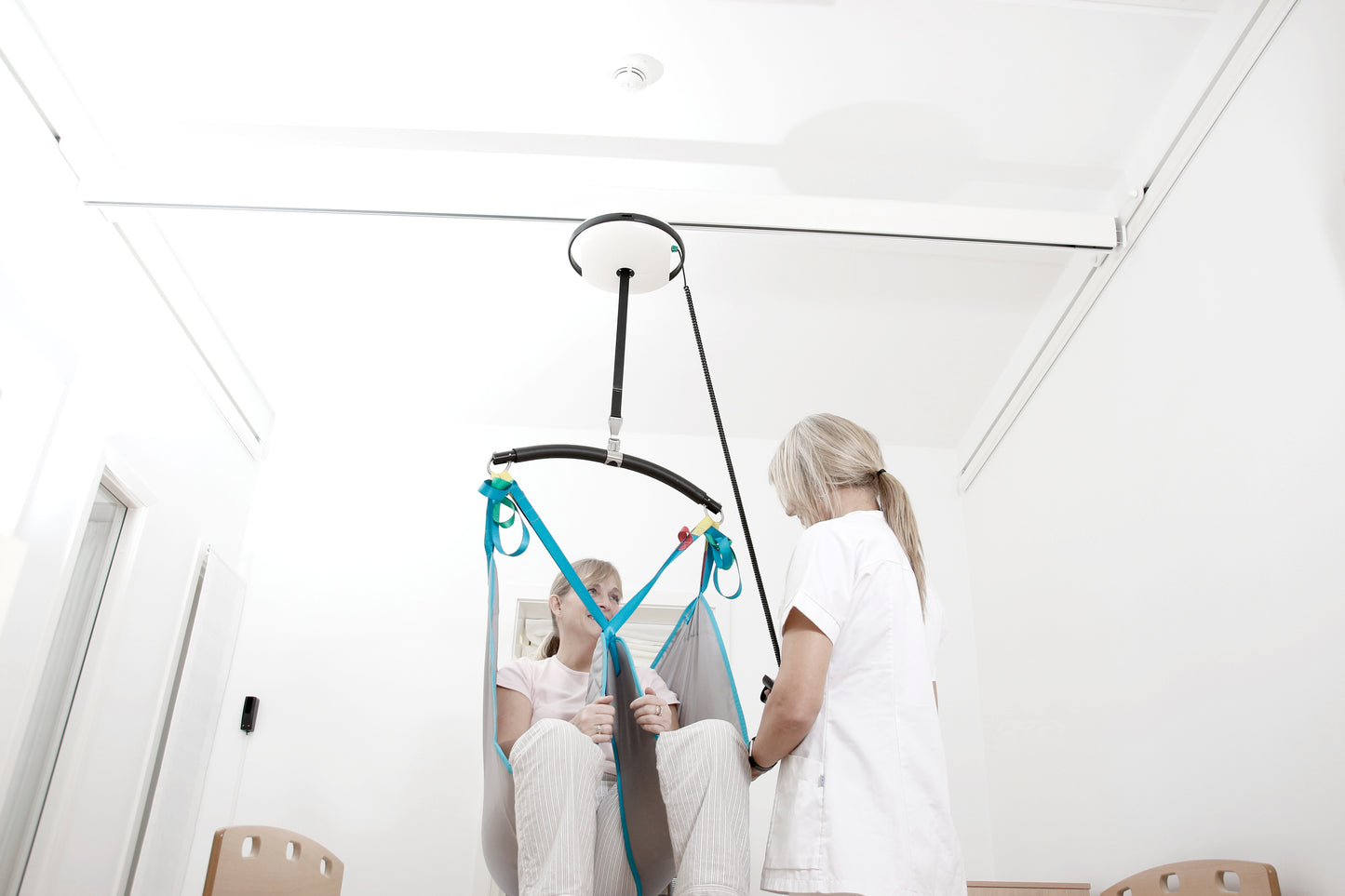

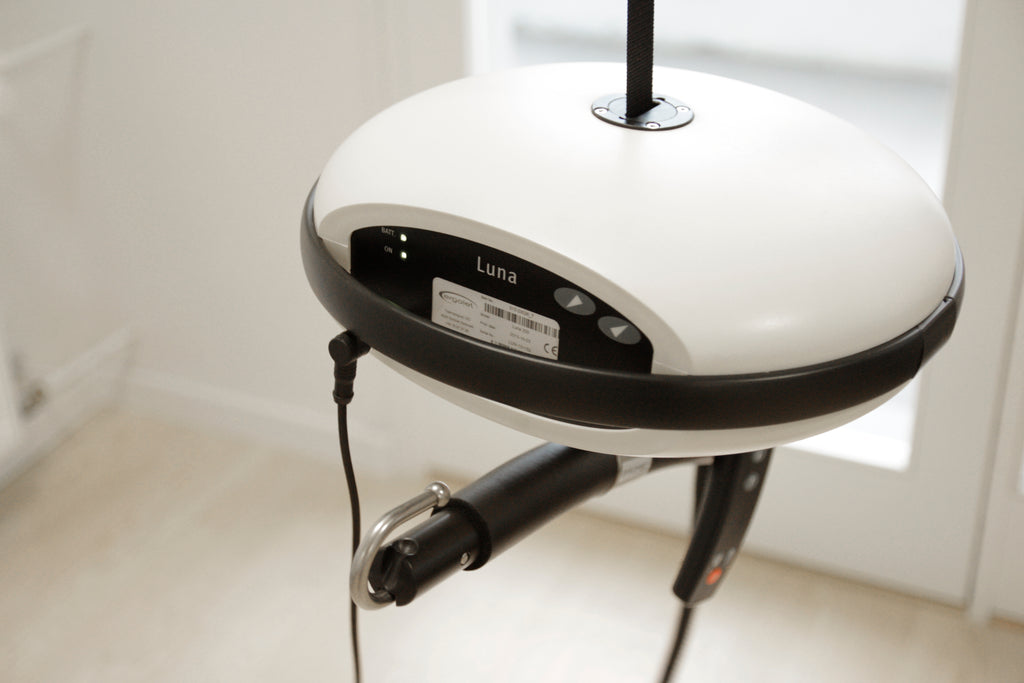

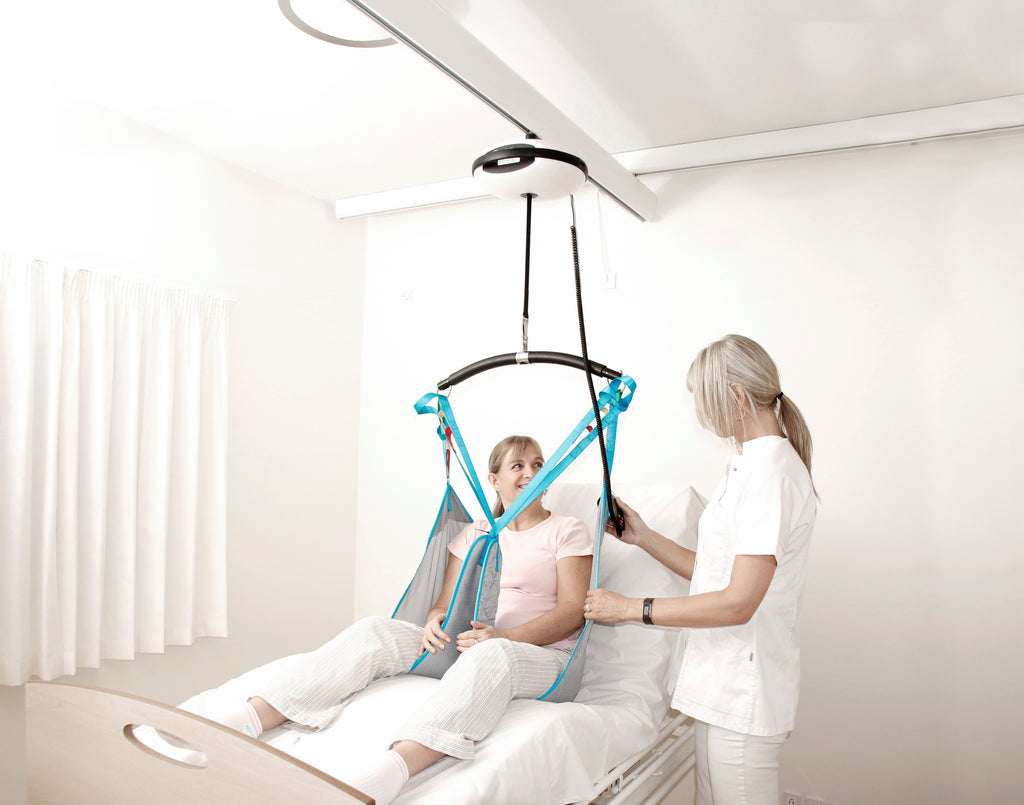

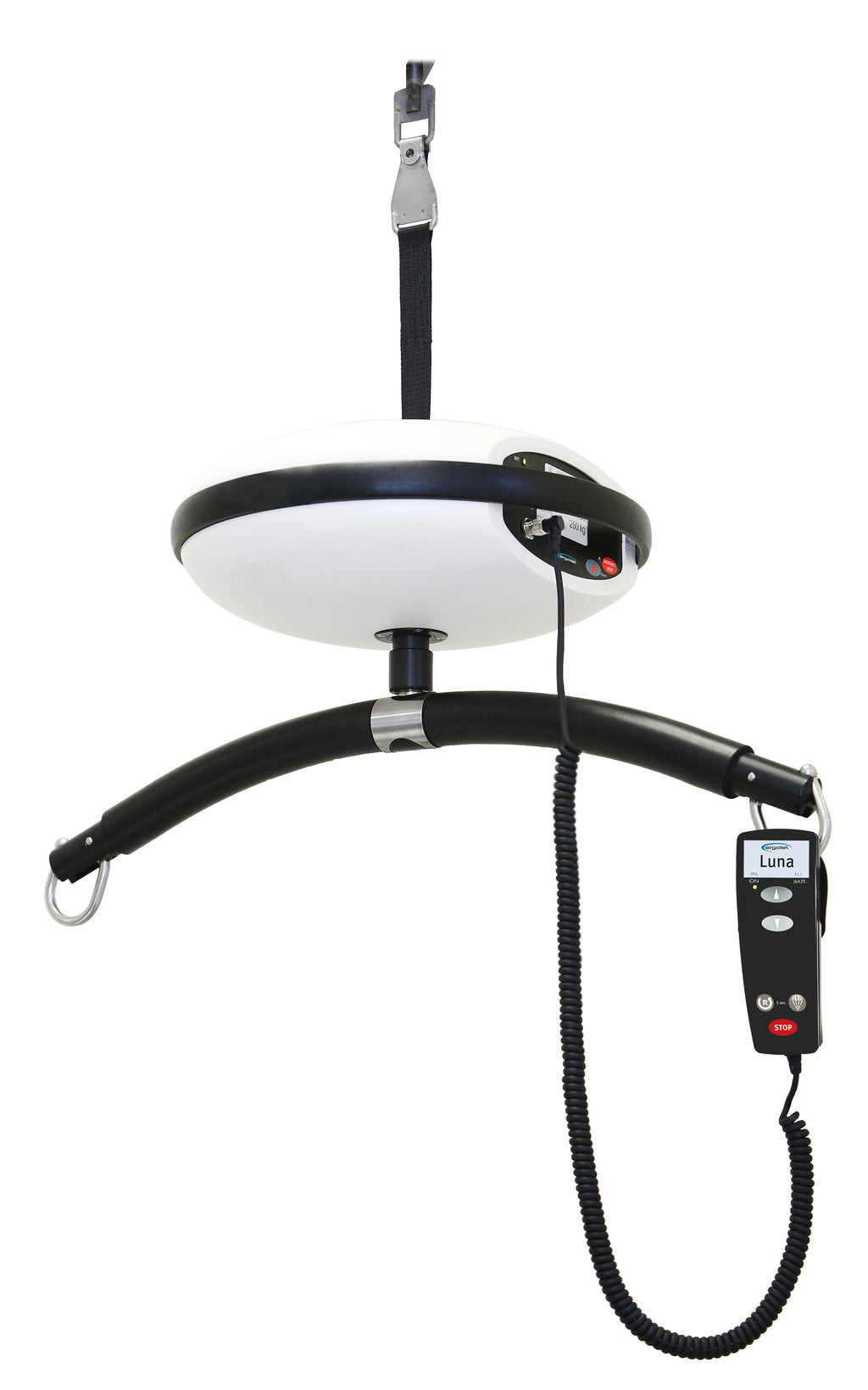

Luna IPx4 Ceiling Hoist

The Luna IPx4 Ceiling Hoist by Ergolet is a premium ceiling hoist designed for safe patient transfers in both standard and wet environments. IPx4 rated for use in bathrooms and shower areas, with a unique modular design that converts between fixed and portable ceiling hoist configurations in the same unit — making it one of the most versatile ceiling hoists available for care homes, hospitals, and rehabilitation settings. Available in 200 kg and 275 kg safe working load variants.

• Safe Working Load: 200 kg or 275 kg (variant dependent)
• IPx4 rated — safe for use in wet environments including bathrooms and shower rooms
• Hand controls: IPx4 (shower-safe) and IPx7 (full immersion) rated
• Converts between fixed and portable ceiling hoist in the same unit — no additional purchase required
• Quick-release mechanism — detaches from track in seconds without tools
• Dual emergency lowering — powered function on hand control and manual function on the motor unit
• Patented Ergolet spreader bar and sling hook system for safe, simple sling attachment
• Soft start and stop motor control for smooth, comfortable transfers
• Charging via ergonomic hand control on wall-mounted docking station
• Overload protection, emergency brake system, and low battery LED indicator

IPx4 Rated for Wet Environments — The Luna is IPx4 tested, allowing safe transfers in bathrooms and shower rooms without risk of lift failure if the unit is inadvertently exposed to water. The hand controls are rated to both IPx4 (shower-safe) and IPx7 (full immersion), providing comprehensive protection in the most demanding wet care environments. This makes the Luna an ideal choice for facilities where bathroom hoisting is a regular requirement.

Fixed or Portable — One Unit — A key differentiator of the Luna is its ability to function as either a fixed ceiling hoist or a portable free-standing hoist within the same modular unit. Simply reverse the Luna and select the appropriate spreader bar to switch between configurations — no additional equipment required. This makes it a cost-effective solution for facilities that need to cover both fixed-rail and portable hoisting requirements without investing in two separate systems.

Quick-Release & Easy Servicing — The Luna’s unique quick-release mechanism allows the hoist to be detached from the ceiling track in seconds with a simple twist-and-turn movement — no tools required. This significantly reduces installation and servicing time, and allows the unit to be quickly repositioned or removed for maintenance. Combined with Ergolet’s extensive range of ceiling and wall-mounted track systems, the Luna provides a complete lifting and transfer solution for the full range of healthcare environments.

Technical Specification:

• Safe Working Load: 200 kg or 275 kg
• IP Rating (motor): IPx4
• IP Rating (hand control): IPx4 & IPx7
• Configuration: Fixed or portable (same unit)
• Emergency lowering: Powered (hand control) and manual (motor unit)
• Motor control: Soft start and stop
• Charging: Via hand control on wall-mounted docking station
• Safety features: Overload protection, emergency brake, electrical emergency stop, low battery LED
• Sling system: Patented Ergolet spreader bar and sling hooks
