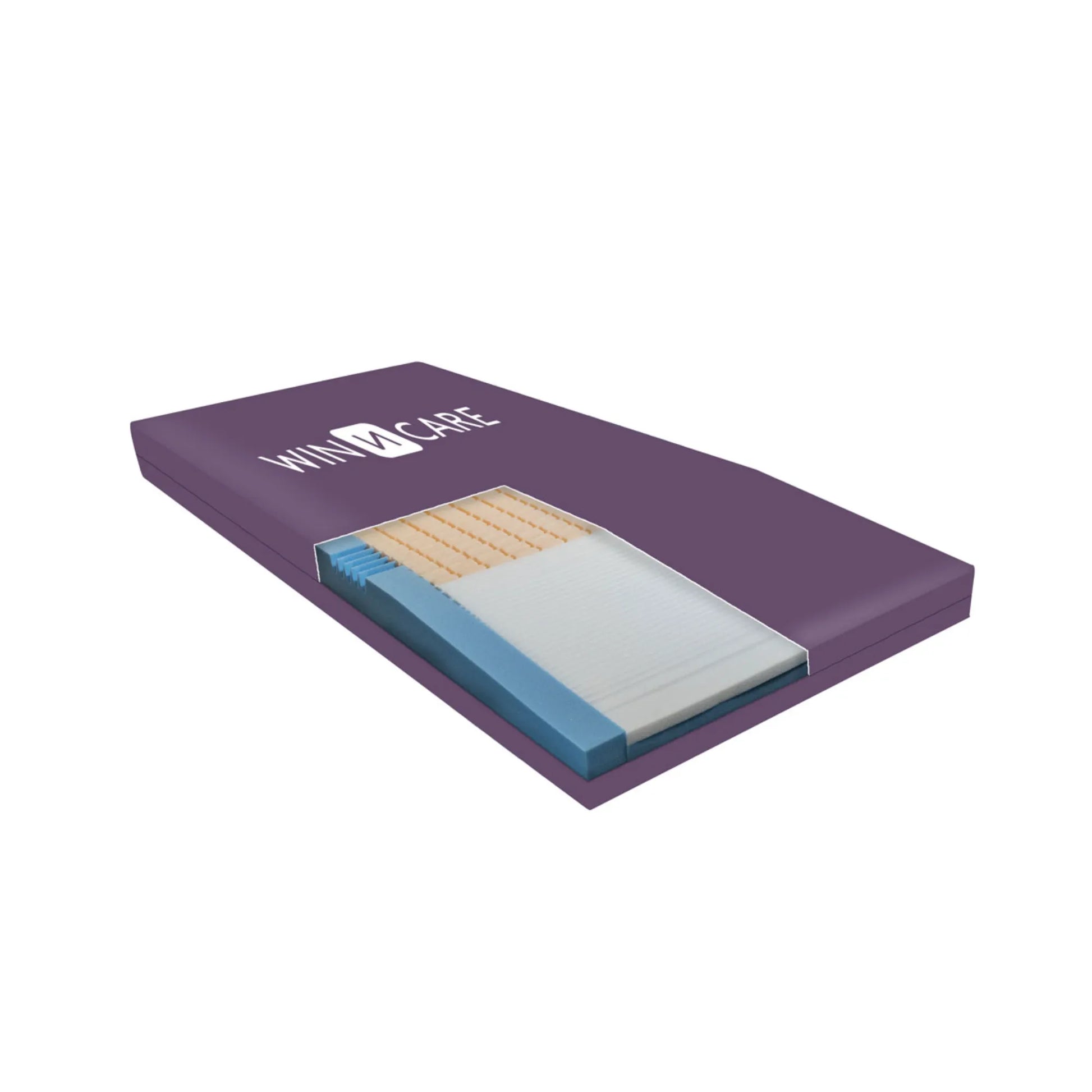

Winncare Avon-Heel Static Mattress

The clinically proven Winncare Avon-Heel pressure reducing mattress, has been developed using the very latest combustion modified ether (CME) and visco elastic foam technology. This high quality product features a castellated foam surface with a very specialist heel management area.

The pressure reducing castellated central zone maximises re-distribution in the most vulnerable areas, so that the mainstream patient weight can be managed effectively.

The castellations not only provide superior pressure management and postural support but it's channels are cut to ensure a constant air dispersion occurs around the patient. This process aids in controlling temperature when compared to standard mattresses and therefore endeavours to improve comfort and as such aids the patients ability to sleep well.

The ultra soft heel section is sloped in order to reduce pressure, whilst an alternative cut (left to right) of visco elastic foam, provides maximum comfort levels. By gently tapering the heel area, pressure is redistributed effectively onto the less vulnerable calf area, thus providing outstanding results.

Technical Information

• Risk Factor


• High to Very High Risk

• Fatigue Class

  Very Severe

• Maximum Patient Weight

  39 stone or 248 kgs

• Mattress Dimensions

  198cm x 88cm x 15cm (suitable for most hospital / homecare beds, although other sizes available upon request)

• Mattress Weight

  13.88 kgs

• Foam Density Insert

  38 – 40 kgs / mÑ CME Base 38 – 40 kgs / mÑ, Visco-V60

• Nominal Hardness Castellated Insert

  110 – 130 N CME Base 185 – 210 N, Visco-Soft

• Mattress Cover Coating

  210 – 230 g (options available)

• Fire Retardancy Standards

  Exceeds minimum requirements of Crib 5 Composite testing (certification available upon request) BS7177
