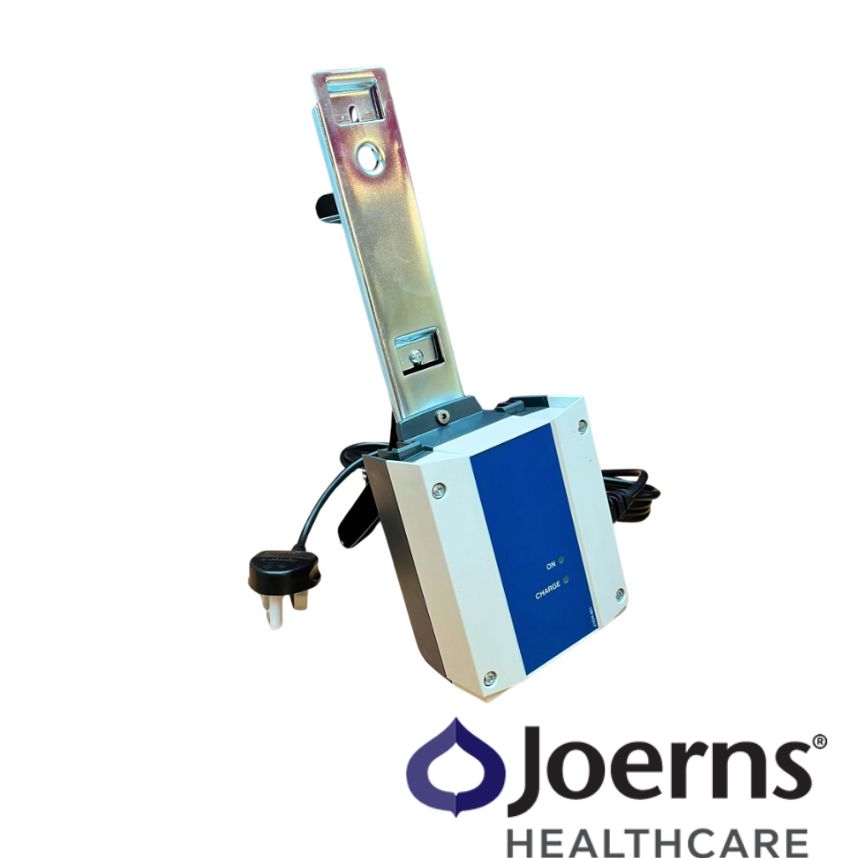

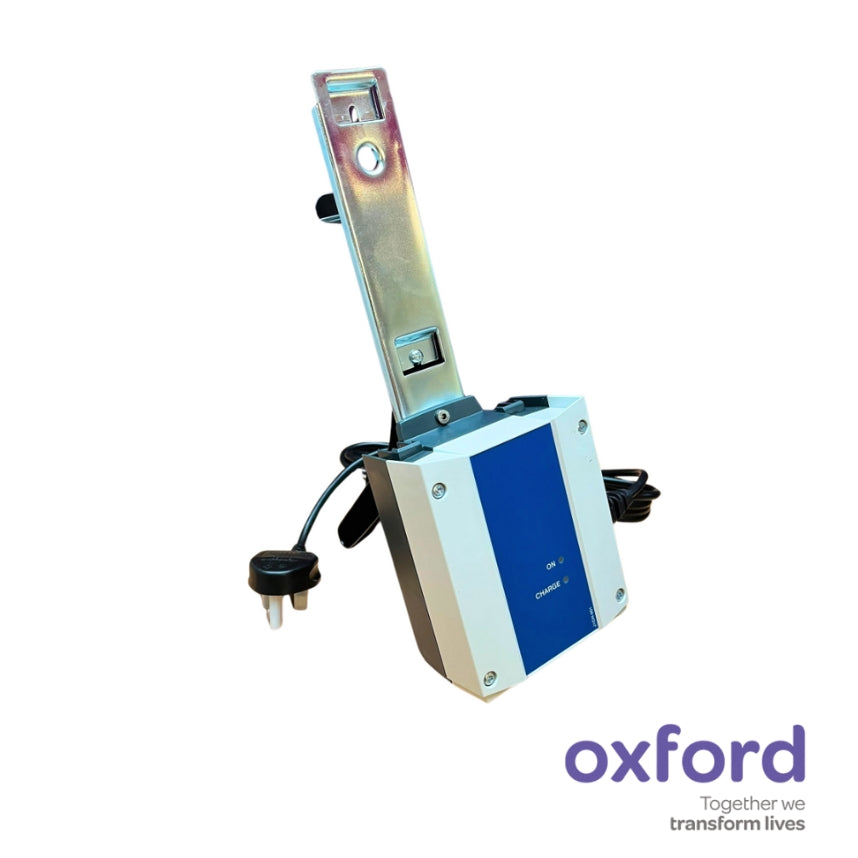

Oxford Hoist Battery Charger and Stand

Mains voltage from 100 V AC – 240 V AC (50/60 Hz) is possible on same charger. The charger indicates whether the charger is connected to the mains (green LED) or whether the battery is being charged (yellow LED). Medically approved.

Features:

• Functional and elegant design
• Approx. charging time for BAJ1 / BAJL battery pack: 4 hours
• The charger is of the SMPS type (Switch Mode Power Supply)
• Mains voltage: 100 – 240 V / 50 – 60 Hz
• Yellow light diode indicates whether the battery is charging
• Green light diode indicates whether the charger is connected to the mains
• Charging current up to 650 mA
• Protection class: IPX5 (only when mounted vertically)
• Colour: Bottom dark grey (RAL 7016) and top light grey (RAL 7035)
• 3.2 m exchangeable mains cable (black straight) Options:
• 0.6 m coiled mains cable
• Customised front cover
• Cable hook for placing the mains cable
• Bottom cover for use when mounted on the MBJ3 mounting bracket. Usage:
• Ambient temperature: +5? to +40? C
• Approvals: IEC60601-1:2005 3rd edition, ANSI / AAMI ES60601:1 2005 3rd edition and CAN / CSA-22.2 No 60601-1:2008
